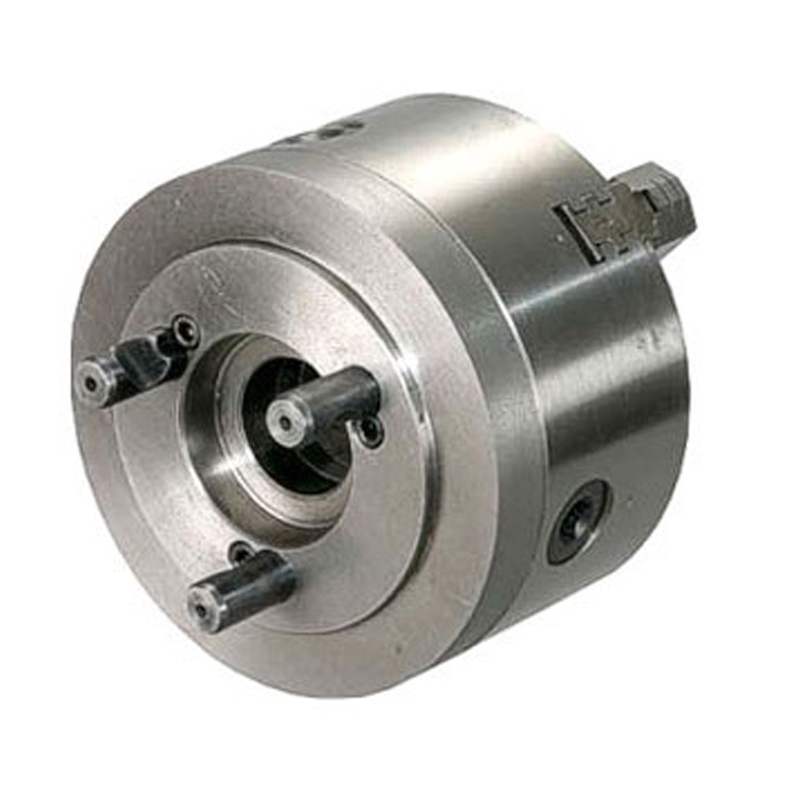

Double Guide Master Top Jaw Chuck with D1 Type Plates

Self Centering Lathe Chucks D,Double Guide Master Top Jaw Chuck with A2 Type Plates Suppliers

PRODUCT CODE: TYPE 5200

Standard Accessories

  • Hard Sectional Jaws (Master Jaw + Reversible Top Hard) - 1 Set
  • Top Soft Jaws - 1 Set
  • Chuck Operating Key - 1 Pc.
  • Allen Key - 1 Pc.
  • Mounting Bolts - 1 Set

Optinal Accessories

  • Outside Hard Solid Jaws- 1 Set
  • Inside Hard Solid Jaws – 1 Set.
  • Soft Solid Jaws - 1 Set

For Technical Specification CLICK HERE

Chuck Size (MM)
Chuck Size (Inches)
Short Taper
Through Hole
C.I. Body
S.G. Body
Steel Body
3 Jaw
4 Jaw
3 Jaw
4 Jaw
3 Jaw
4 Jaw

125

5”

D1-4

32

13331254

13341254

23331254

23341254

33331254

33341254

160

6 ¼”

D1-4

42

13331604

13341604

23331604

23341604

33331604

33341604

160

6 ¼”

D1-5

42

13331605

13341605

23331605

23341605

33331605

33341605

200

8”

D1-4

55

13332004

13342004

23332004

23342004

33332004

33342004

200

8”

D1-5

55

13332005

13342005

23332005

23342005

33332005

33342005

200

8”

D1-6

55

13332006

13342006

23332006

23342006

33332006

33342006

250

10”

D1-6

76

13332506

13342506

23332506

23342506

33332506

33342506

250

10”

D1-8

76

13332508

13342508

23332508

23342508

33332508

33342508

315

12 ½”

D1-6

105

13333156

13343156

23333156

23343156

33333156

33343156

315

12 ½”

D1-8

105

13333158

13343158

23333158

23343158

33333158

33343158

400

15 ¾”

D1-8

136

13334008

13344008

23334008

23344008

33334008

33344008

400

15 ¾”

D1-11

136

133340011

133440011

233340011

233440011

333340011

333440011
