Lathe Chucks

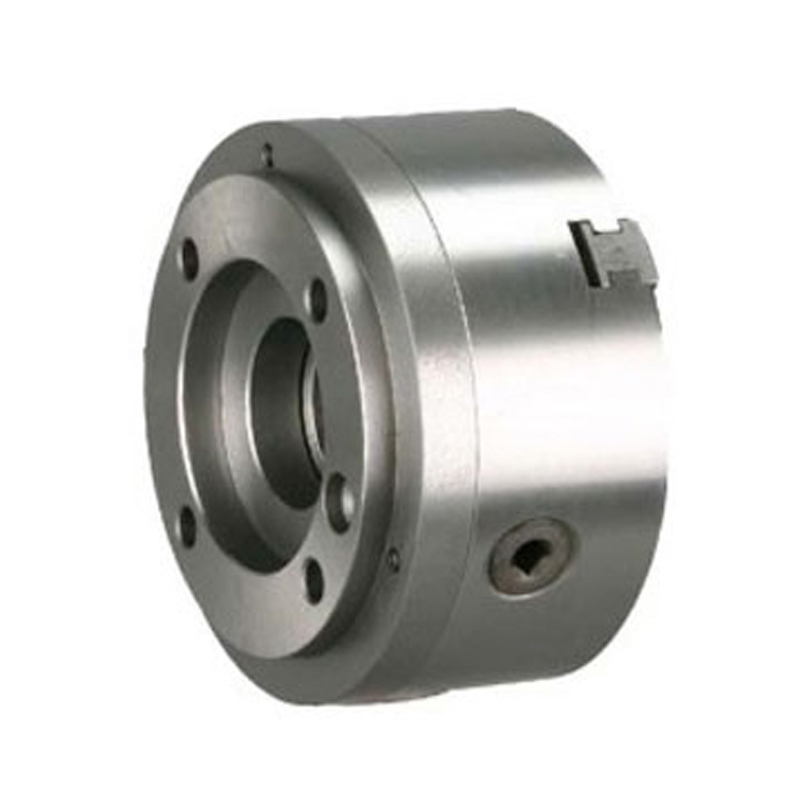

Self Centering Single Guide Standard Jaw Chuck with D1 Type Plate

Standard Jaw Chuck Suppliers India

PRODUCT CODE: TYPE 2300

Standard Accessories

  • Outside Hard Solid Jaws – 1 Set.
  • Inside Hard Solid Jaws – 1 Set.
  • Chuck Operating Key – 1 Pc.
  • Mounting Bolts – 1 Set.

Optinal Accessories

  • Soft Solid Jaws- 1 Set
  • Master Base Jaws - 1 Set
  • 2 Pc. Jaws (Master Base+Top Soft) - 1 Set

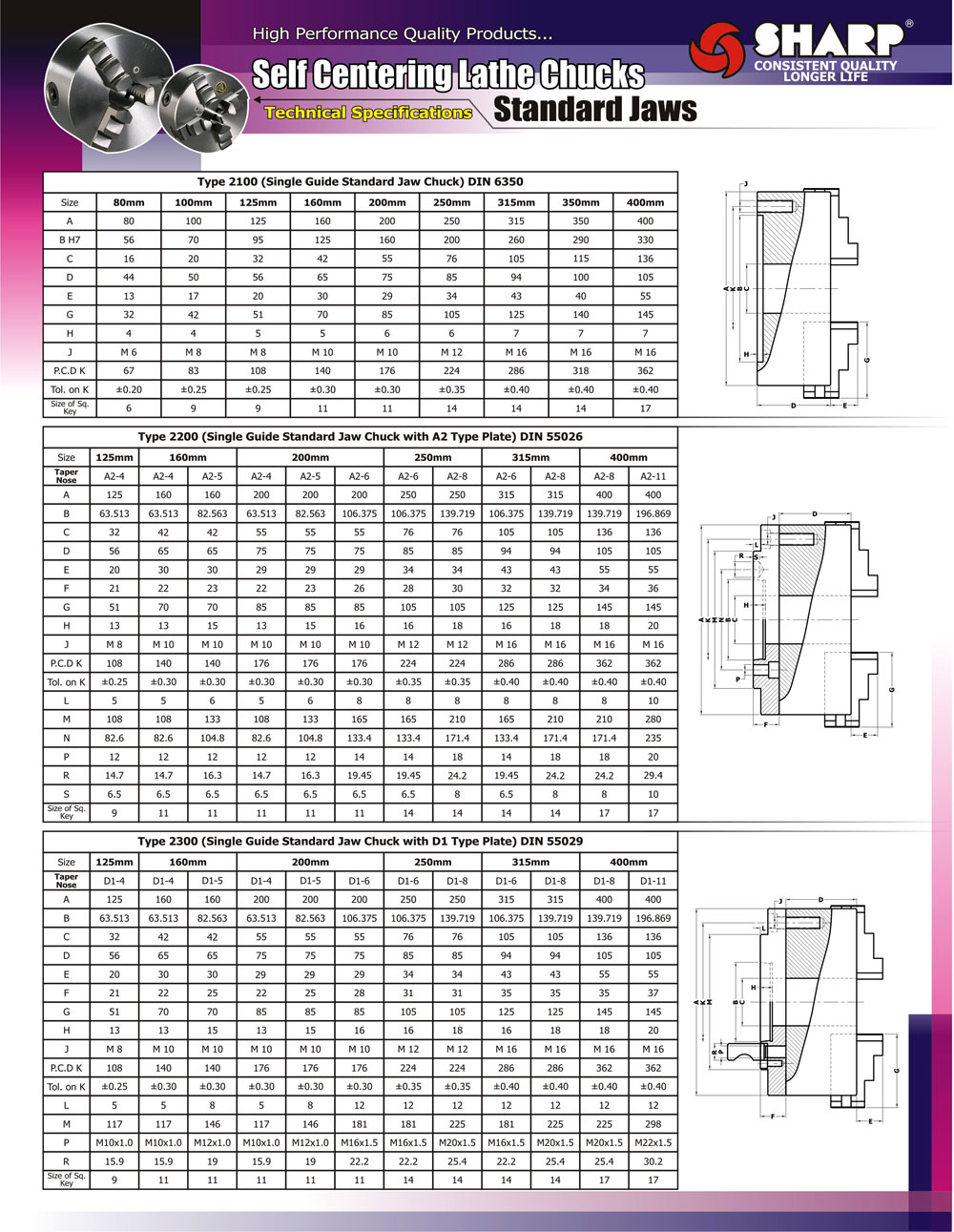

For Technical Specification CLICK HERE

Chuck Size (MM)

Chuck Size (Inches)

Short Taper

Through Hole

C.I. Body

S.G. Body

Steel Body

3 Jaw

4 Jaw

3 Jaw

4 Jaw

3 Jaw

4 Jaw

125

5”

D1-4

32

10331254

10341254

20331254

20341254

30331254

30341254

160

6 ¼”

D1-4

42

10331604

10341604

20331604

20341604

30331604

30341604

160

6 ¼”

D1-5

42

10331605

10341605

20331605

20341605

30331605

30341605

200

8”

D1-4

55

10332004

10342004

20332004

20342004

30332004

30342004

200

8”

D1-5

55

10332005

10342005

20332005

20342005

30332005

30342005

200

8”

D1-6

55

10332006

10342006

20332006

20342006

30332006

30342006

250

10”

D1-6

76

10332506

10342506

20332506

20342506

30332506

30342506

250

10”

D1-8

76

10332506

10342506

20332506

20342506

30332506

30342508

315

12 ½”

D1-6

105

10333156

10343156

20333156

20343156

30333156

30343156

315

12 ½”

D1-8

105

10333158

10343158

20333158

20343158

30333158

30343158
